DA-420
| Bag length (mm) | 80–320 |
|---|---|
| Bag width (mm) | 50–200 |
| Maximum film width (mm) | 420 |
DAWNTECH / Packaging

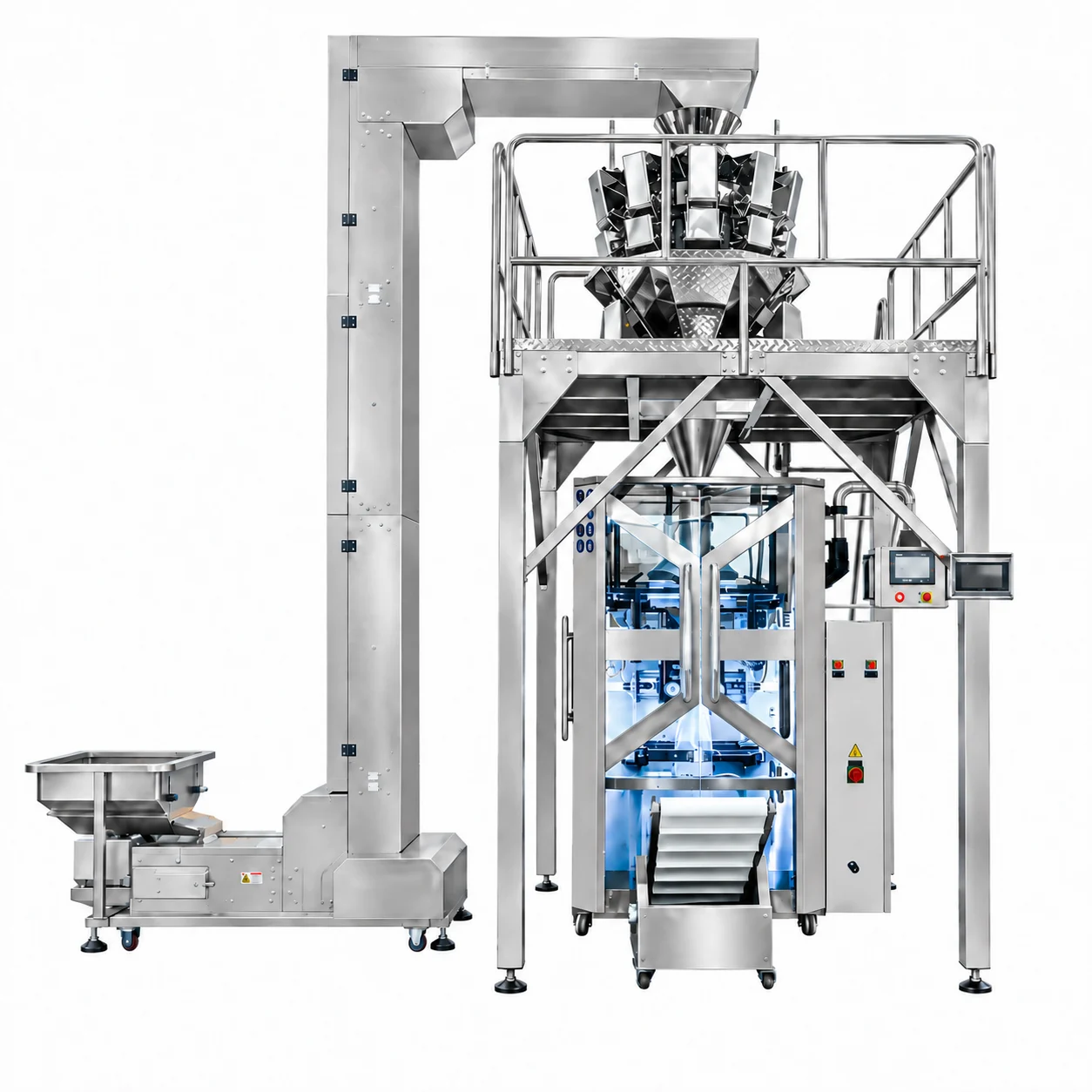

Vertical form-fill-seal machine (VFFS)
A vertical form-fill-seal (VFFS) machine forms, fills and seals bags from roll film. Feeding and dosing equipment is selected to suit your product and production requirements.
Premade pouch machine models
Bag dimensions from the catalogue
These values describe the packaging-machine bag range, not the dimensions, capacity or specifications of the complete line. All dimensions in the table are in millimetres.
DA-520
| Bag length (mm) | 80–420 |
|---|---|
| Bag width (mm) | 50–250 |
| Maximum film width (mm) | 520 |
DA-720
| Bag length (mm) | 100–500 |
|---|---|
| Bag width (mm) | 100–350 |
| Maximum film width (mm) | 720 |
DA-820
| Bag length (mm) | 100–550 |
|---|---|
| Bag width (mm) | 180–400 |
| Maximum film width (mm) | 820 |
COMPLETE LINE GALLERY
See the whole line, assembled together.
Explore the complete packaging lines below, including different feeding and dosing arrangements. Each line brings the systems together around a product and its packaging requirements.
Start with the package you have in mind.
Send us a bag photo or sample. Our engineers will recommend the packaging process and equipment configuration for your project.
Questions about selecting your packaging line
What determines the feeding and dosing equipment?
The material being packed determines the feeding and dosing arrangement. For example, a granule configuration can use weighing, a powder configuration uses auger dosing, and the illustrated liquid or paste configuration uses pump dosing. The complete arrangement is selected for your project.
What determines premade pouch versus roll-film packaging?
The intended bag determines the packaging route. A premade pouch machine opens, fills and seals a bag that has already been made. A vertical form-fill-seal machine makes the bag from roll film, fills it and seals it.
How is the packaging-machine model selected?
Required output is considered together with bag dimensions and fill quantity to select the model. Send your requirements and let our team propose the complete configuration; you do not need to assemble a system yourself.
What information should I provide first?
Start with the product name or a photo, the quantity per bag and an example of the finished bag. Add bag dimensions and required output if known. If you are unsure of the packaging route, we can discuss it with you.
COMPLETE PACKAGING LINES
Start with your product. Understand the complete line.
Your material determines feeding and dosing. Your bag determines premade pouch or roll-film packaging. Required output, bag dimensions and fill quantity guide the final packaging-machine model.
Granule Packaging Lines
Complete weighing and bagging lines for granules and solid products. See how product handling, weighing and bag format work together, then send your requirements for an engineered configuration.
Explore this packaging line →
Powder Packaging Lines
Complete powder feeding, dosing and bagging lines. Understand how a screw feeder, an auger filler and the chosen packaging machine form a coordinated system.
Explore this packaging line →
Liquid and Paste Packaging Lines
Complete filling and bagging lines for liquids, sauces and pastes. Understand how the product supply, dosing pump and packaging machine work together.
Explore this packaging line →LET'S TALK ABOUT YOUR PRODUCT
Tell us about your product. We will recommend the packaging line.
You do not need to know which machine to choose. Tell us what you want to pack and how to reach you. We will help with the next steps.
